Tank capacity: 3000l / 15 300 kg
Maximum working pressure: 13 bar
Cleaning efficiency: up to 324 m2//h
Weight: 1049 kg

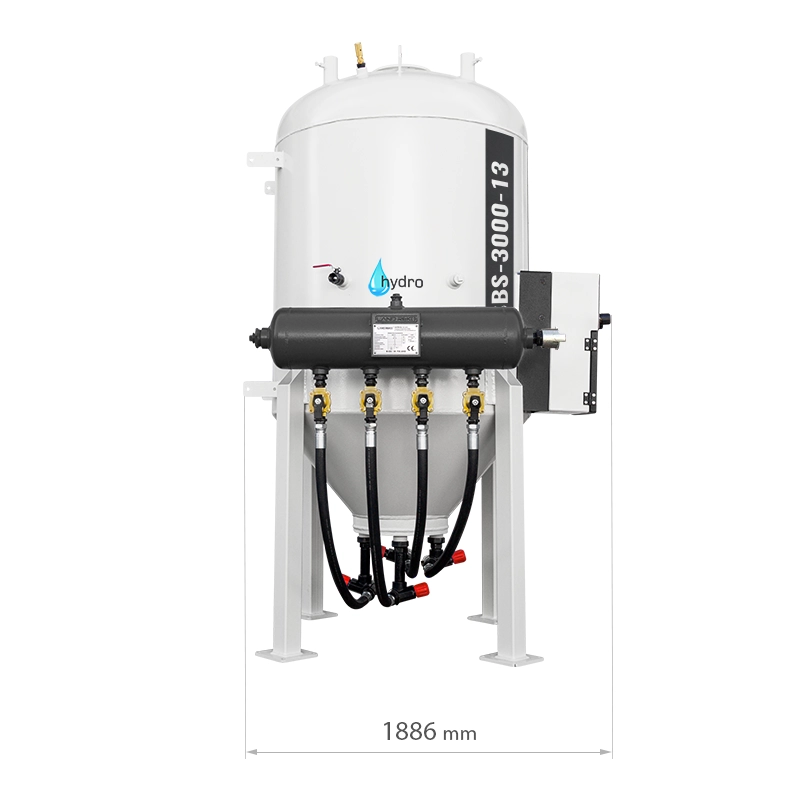

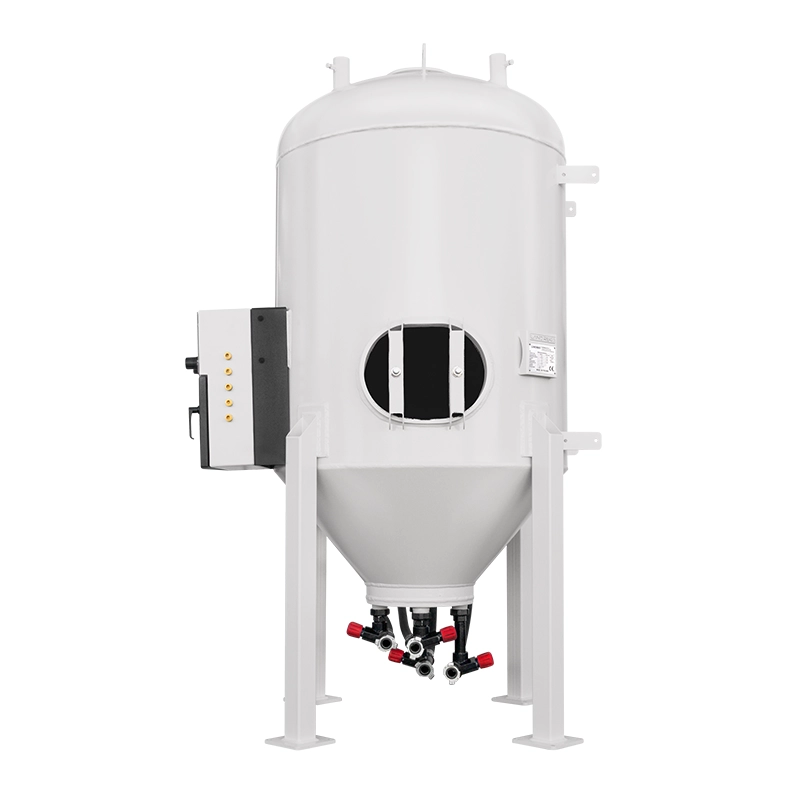

IN THE PHOTO: WET BLASTER / SODA BLASTER LAND REKO® SBS-3000-13 H
All pictures shown are for illustrative purposes. Due to display techniques and conditions during photography, the actual appearance of the products, including their color, may differ from what is shown on the website.
| Tank capacity: | 3000l / 15 300 kg |
| Cleaning level: | SA-3.0/SP5 (Very deep and vast corrosion) |
| Air flow: | 3 100 l / min (for one nozzle 7.0 mm) |
| Water demand: | from 0,3 l / min |
| Abrasive valve: | SVA |
| Maximum working pressure: | 13 bar |
| Working temperature: | -20 - 100 °C |
| Cleaning efficiency: | up to 324 m2/h |
| Nozzle diameters: | from 2 to 18 mm |
| Weight: | 1049 kg |
The SBS-H series pressure wet blasting/soda blasting machines are mobile devices designed for the most demanding dust-free surface treatment processes using a stream of compressed air and abrasive media in a water mist environment. Thanks to their favorable conical bottom design, which facilitates the movement of abrasive material, and the possibility of using various types of abrasive valves, they are suitable for operation with all types of abrasive materials of spherical, rounded, and/or sharp-edged shapes, as well as of any grain size. The SBS-H series blasting machines reduce dust generation by up to 97% compared to conventional blasting machines and allow for simultaneous operation with up to six working nozzles (depending on the model). The SBS series blasting machines allow for simultaneous operation with up to six working nozzles (depending on the model).
The SBS-H series wet air-abrasive blasting machines enable achieving a surface cleanliness grade of up to SA-3/SP5 and an efficiency of up to 324 m2/h in a dust-free environment. The SBS-H series wet blasting/soda blasting machines are equipped with a pneumatic system for forming a water-based abrasive stream using compressed air and the unique WIN-BA hydro-abrasive nozzle, which consumes approximately 30% less air compared to conventional nozzles. The SBS series sandblasters are equipped with large CamLock-type couplings, ensuring quick and safe connections while maintaining maximum compressed air flow efficiency. Abrasive media loading is carried out either manually or automatically via a pneumatically controlled feed valve connected to a rubber membrane – eliminating the need for inefficient threaded connections – which makes the SBS series blasting machines safer and easier to operate. The aquablasting/soda blasting process is widely used for cleaning very thin surfaces – below 1 mm – such as car body panels, aluminum sheets, wood, plastics, etc.
The aquablasting/soda blasting process is widely used for cleaning very thin surfaces – below 1 mm – such as car body panels, aluminum sheets, wood, plastics, etc. A significant advantage of the SBS-H series blasting machines is their suitability for use in environments where spark generation or the buildup of electrostatic charges is unacceptable, such as in the petrochemical industry.
Control of the blasting machine (in pneumatic or electric version) is intuitive and precise, and therefore efficient, thanks to the placement of the control handle at the end of the working hose. A definite advantage of this solution is the ability for the operator directly performing the cleaning process to stop the operation of the device, which is in line with the most recent occupational health and safety regulations (solution available as an optional feature).
The SBS-H blasting machine tank has been designed and manufactured in accordance with the requirements of the Pressure Equipment Directive PED 2014/68/EU, based on and under the supervision of a notified body-approved design. It bears the CE marking.
