Motor power: 30.0kW
Airflow: 27 820 m3/h
Number of filter elements: 12
Inlet connection: 630 mm

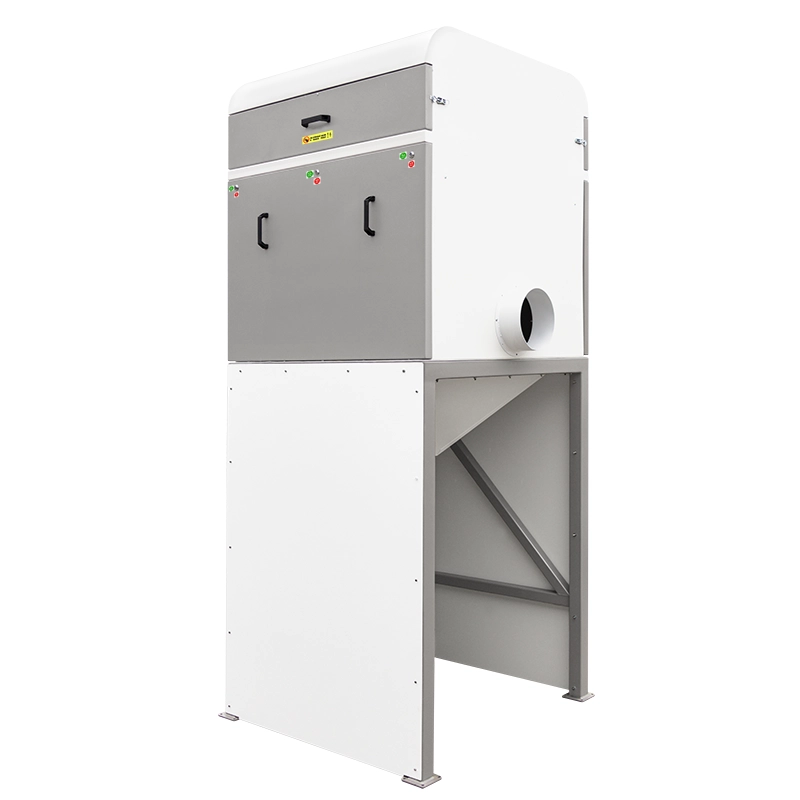

IN THE PHOTO: EXHAUST SYSTEM LAND REKO® FDU-300
All pictures shown are for illustrative purposes. Due to display techniques and conditions during photography, the actual appearance of the products, including their color, may differ from what is shown on the website.
| Supply voltage: | 400V |
| Motor power: | 30.0 kW |
| Airflow: | 27 820 m3/h |
| Number of filter elements: | 12 |
| Inlet connection: | 630 mm |

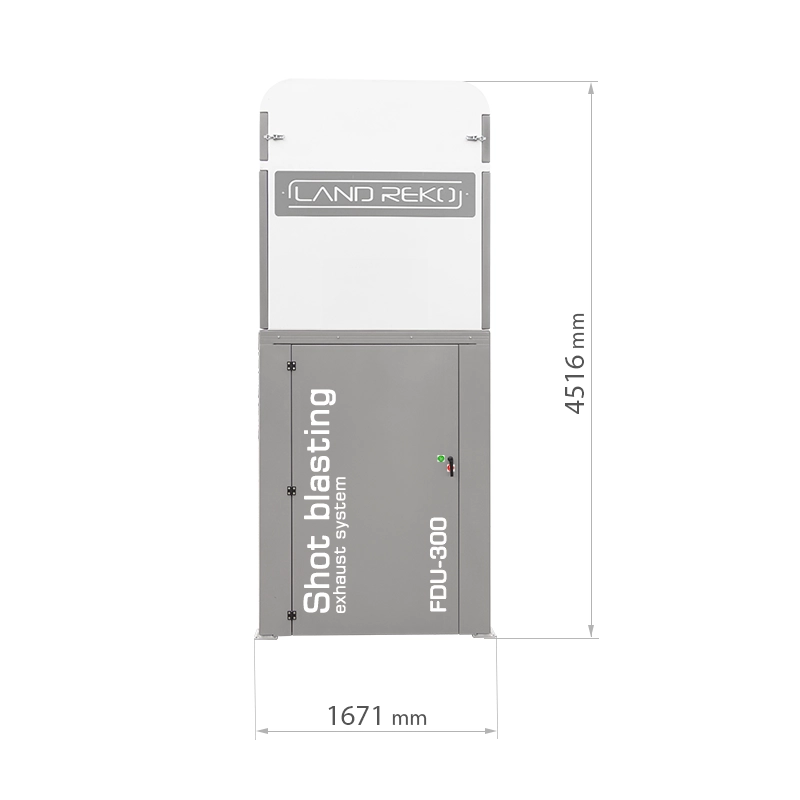

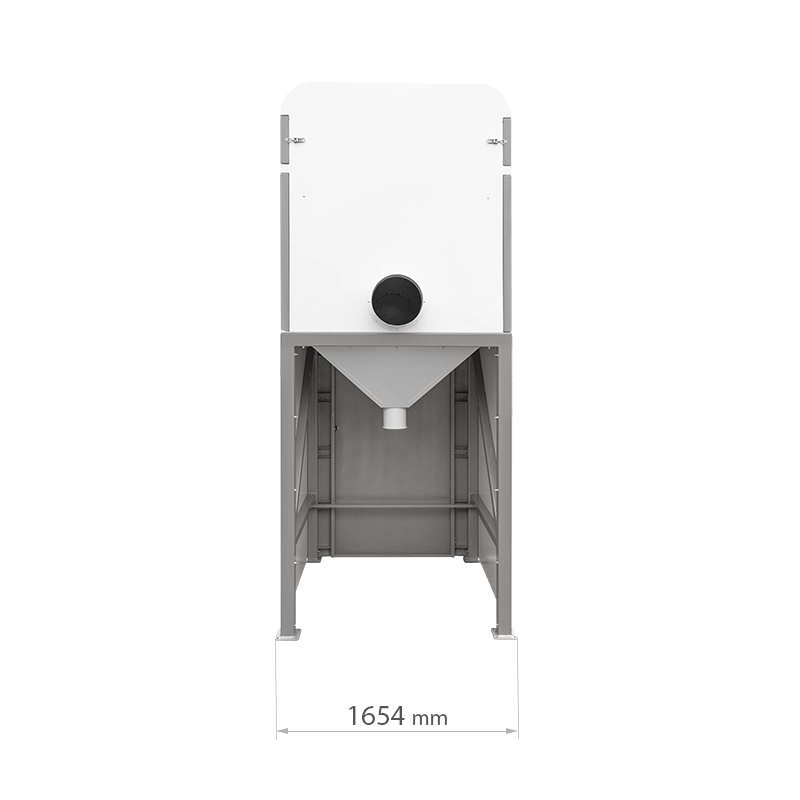

| Dimensions [W x H x D]: | 1671 x 4516 x 1654 mm |
| Weight: | 1124 kg |
FDU series extraction systems are used to remove dust and contaminants generated during the abrasive blasting process and the transport of abrasive grains. FDU dust extraction systems help maintain order in the blast room by removing accumulated dust and contaminants, facilitating the processing and its control.
Effective removal of contaminants and maintaining proper conditions in the blast room contribute to achieving better surface quality, free from rust, scale, and other defects.
By removing hazardous, irritating dust and fumes, FDU series extraction systems prevent operators from inhaling them, protecting their health. Furthermore, through the filtering process, they emit significantly less polluted air into the atmosphere, in compliance with environmental regulations.
