Motor power: 7.5 kW
Airflow: 15 100 m3/h
Number of filter elements: 6
Inlet connection: 400 mm
IN THE PHOTO: EXTRACTION UNIT LAND REKO® IFE-75M
All pictures shown are for illustrative purposes. Due to display techniques and conditions during photography, the actual appearance of the products, including their color, may differ from what is shown on the website.
| Supply voltage: | 400 V |
| Motor power: | 7.5 kW |
| Airflow: | 15 100 m3/h |
| Number of filter elements: | 6 |
| Inlet connection: | 400 mm |

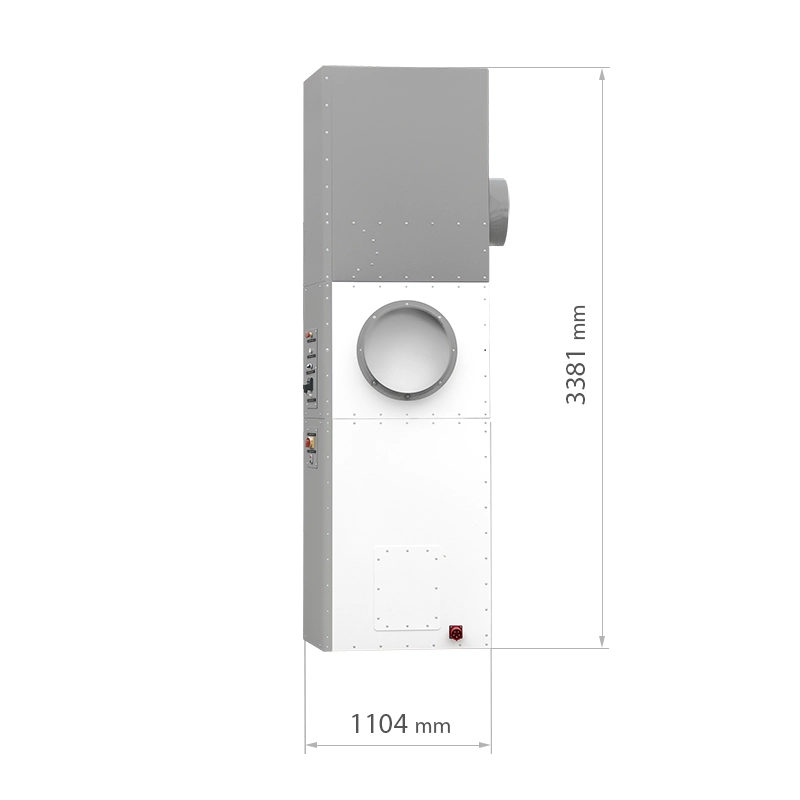

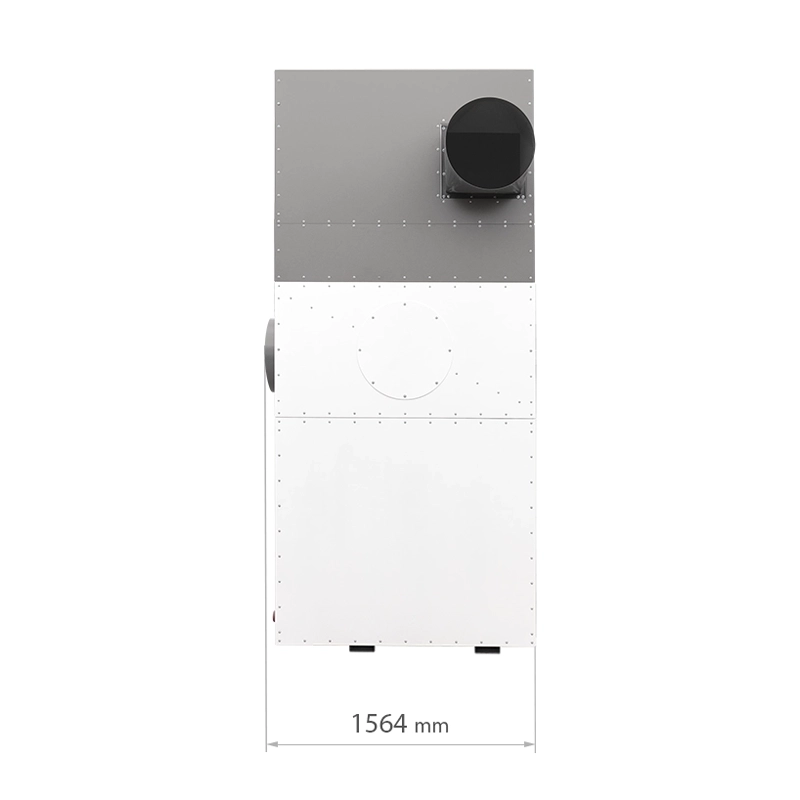

| Dimensions (W x H x D): | 1564 x 3381 x 1104 mm |
| Weight: | 546 kg |
IFE series industrial extraction units are efficient dust extraction and ventilation systems designed to eliminate contaminants by extracting contaminated air directly from the work area. IFE units feature a modular design with various operating parameters depending on the requirements of the specific process and workstation layout.
IFE filter units offer multi - stage filtration and high efficiency parameters with flow rates of up to 80,000 m³/h. IFE extraction units are designed for use in a wide range of technological processes, such as welding, grinding, polishing, machining (including oil mist capture), blasting, plastics processing, bulk material transport, and other industrial processes requiring air purification of gases, liquids, or solid particles.
Using IFE series filter systems simplifies work organization, facilitates work station cleanliness, and makes the workplace more comfortable and safer.
